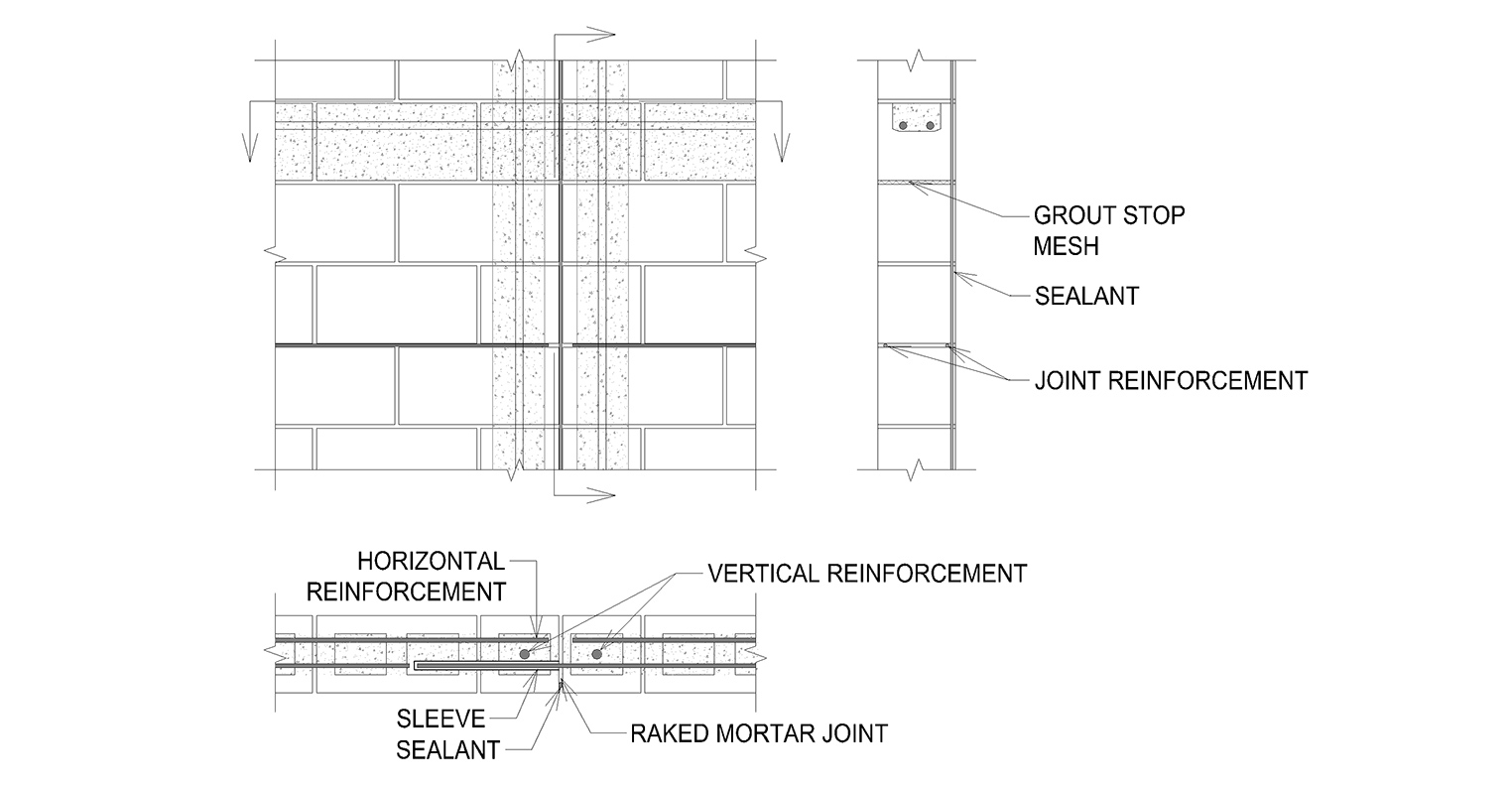

- VERTICAL REINFORCEMENT IS REQUIRED ON BOTH SIDES OF A JOINT
- HORIZONTAL REINFORCEMENT IS DEPENDANT UPON STRUCTURAL AND MOVEMENT CONSIDERATIONS. OPTIONS INCLUDE:
- INTERRUPTED HORIZONTAL BARS
- CONTINUOUS HORIZONTAL BARS

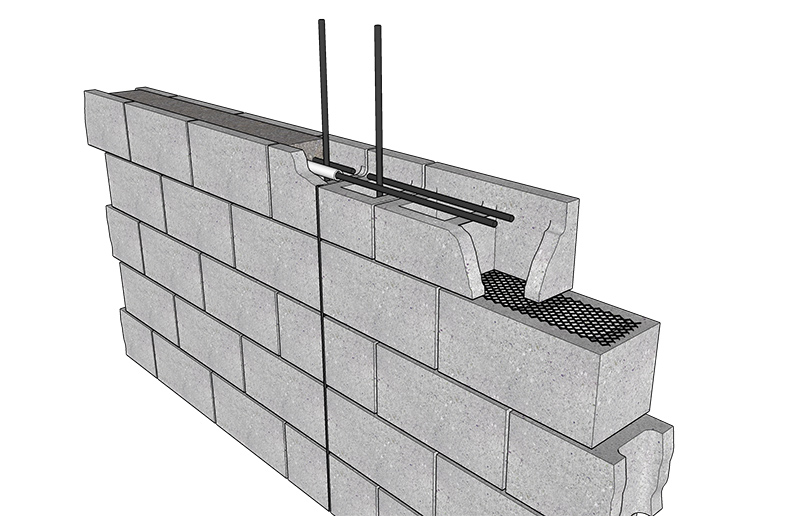

- ONE OR TWO BARS EXTENDED IN A SLEEVE AS A DOWEL (SHOWN IN DWG)
- JOINT REINFORCEMENT TYPICALLY CONTINUOUS THROUGH THE JOINT
