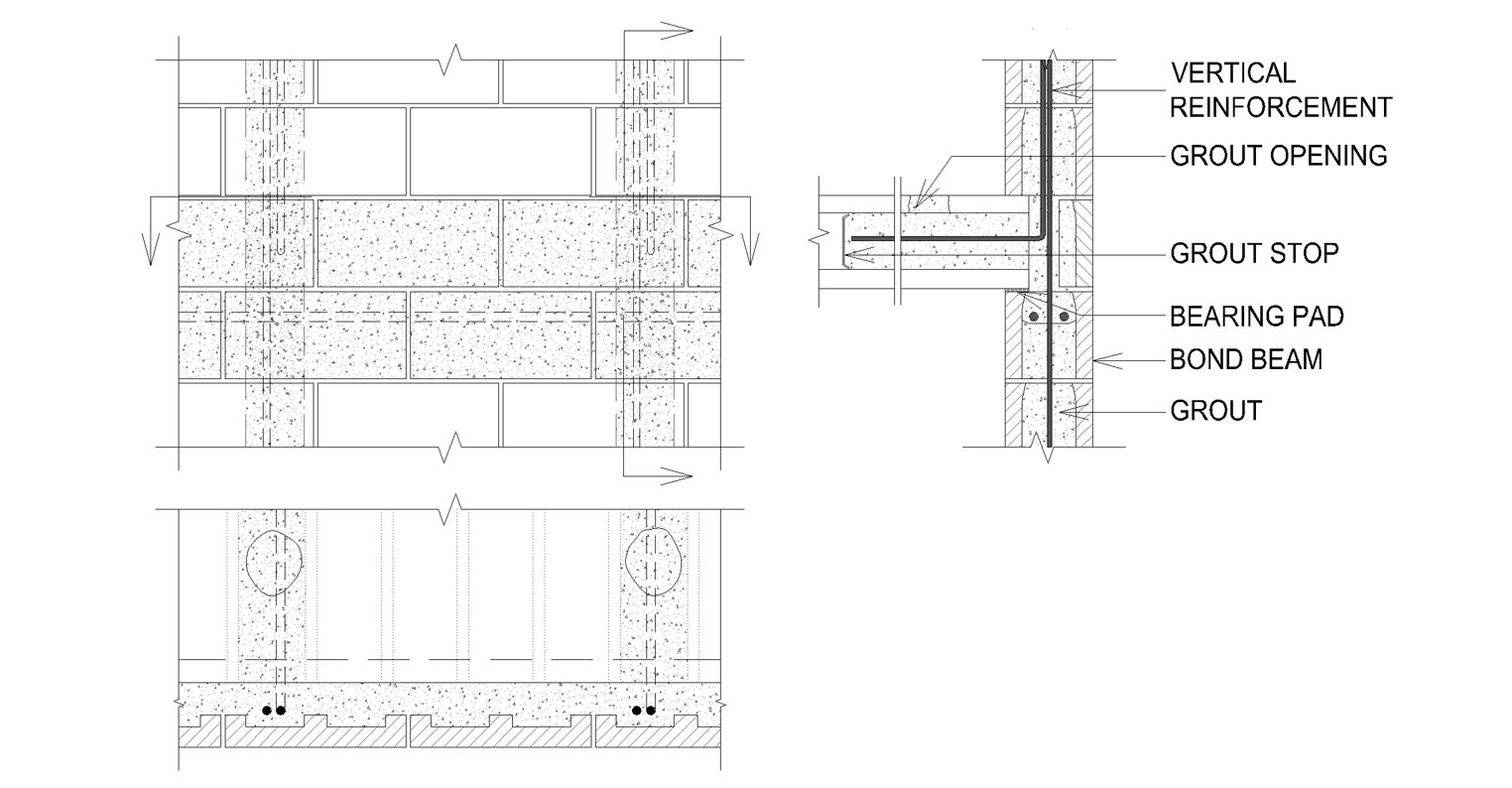

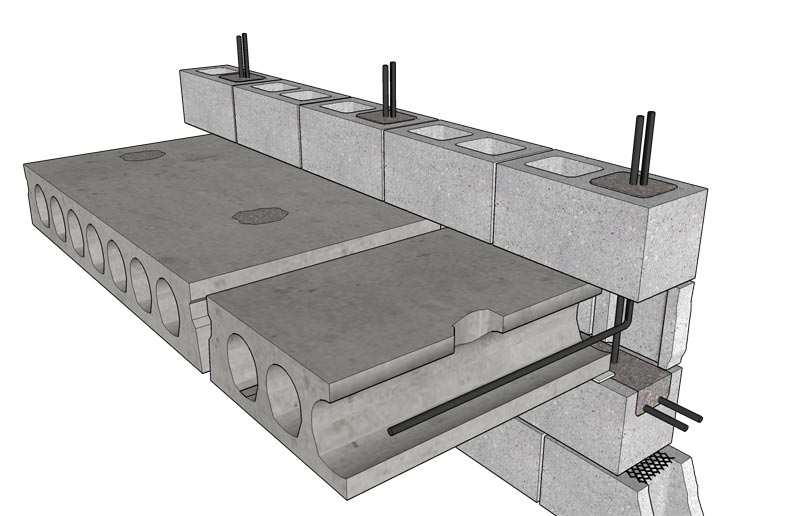

Detail B. 2: Precast Slab End Connection
B2
B1
Notes
Close
LENGTH OF THE DOWEL RETURN INTO THE PRECAST PLANK PER STRUCTURAL REQUIREMENTS
GROUT STOPS REQUIRED
