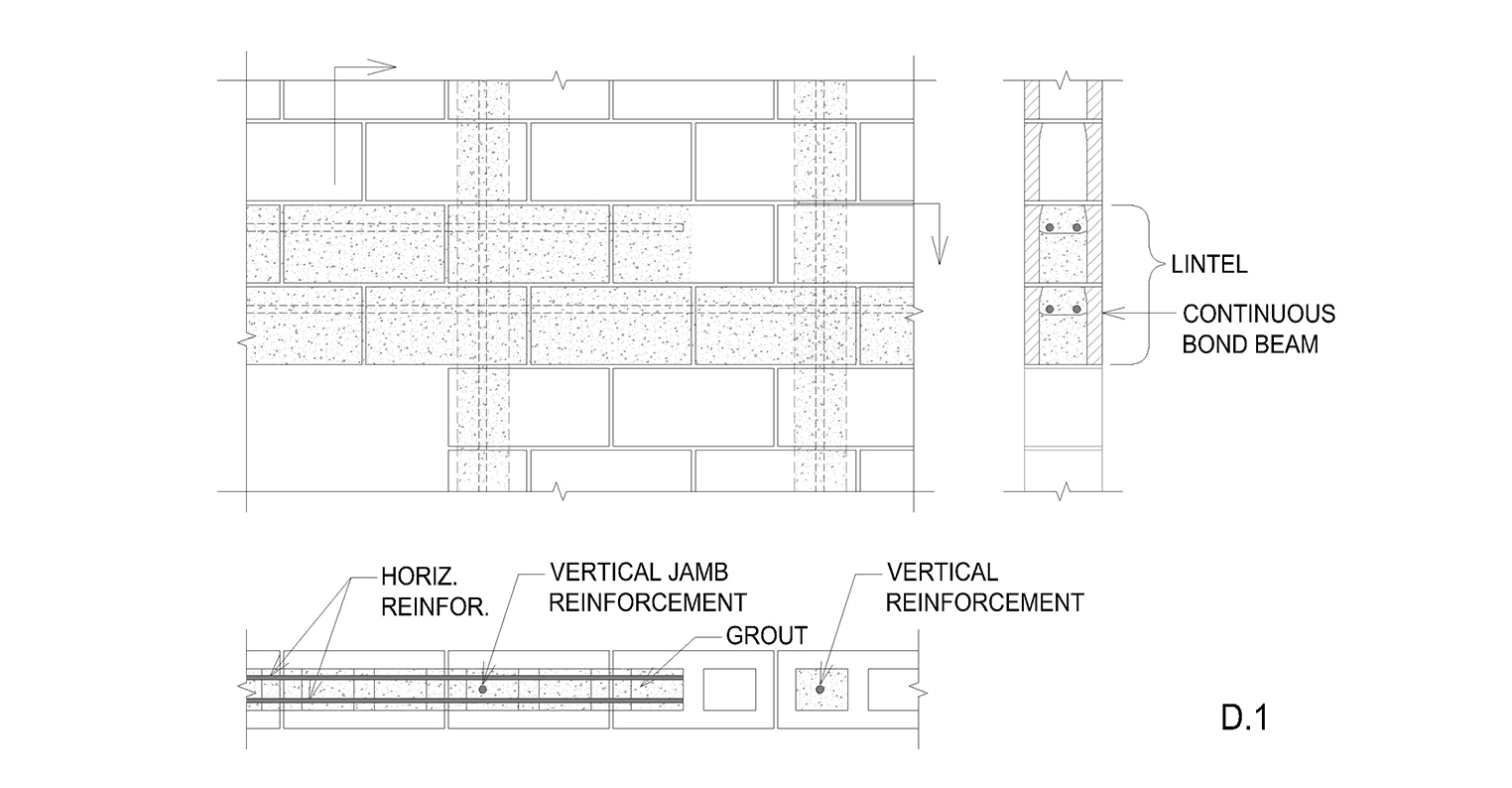

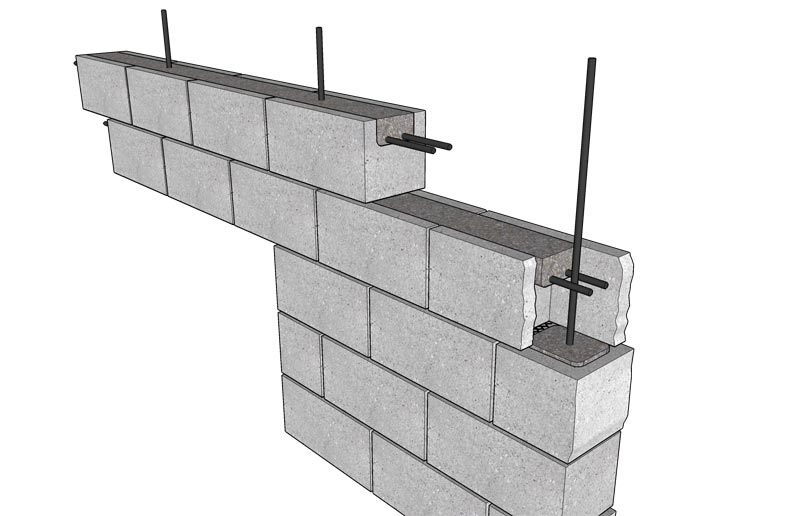

- TWO OR MORE REINFORCED COURSES MAY BE REQUIRED FOR LONGER SPANS AND HEAVIER LOADS
- EXTEND LINTEL REINFORCEMENT PAST THE OPENING ON BOTH SIDES PER STRUCTURAL REQUIREMENTS
- MAY COINCIDE WITH BOND BEAM (CONTINUOUS BOND BEAM SHOWN IN THIS EXAMPLE – SEE ELEVATION EL.2)
- SINGLE LEG STIRRUPS MAY BE REQUIRED FOR LONGER SPANS AND HEAVIER LOADS
