Masonry - Structural - Detail E.1 - Precast Slab End Connection

Detail E. 1: Precast Slab End Connection

Masonry structural Section E

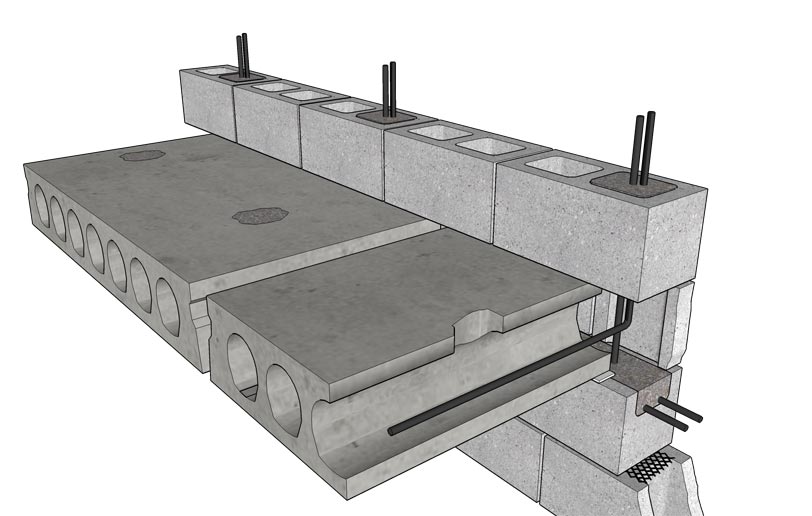

Structural - Detail E1 Image

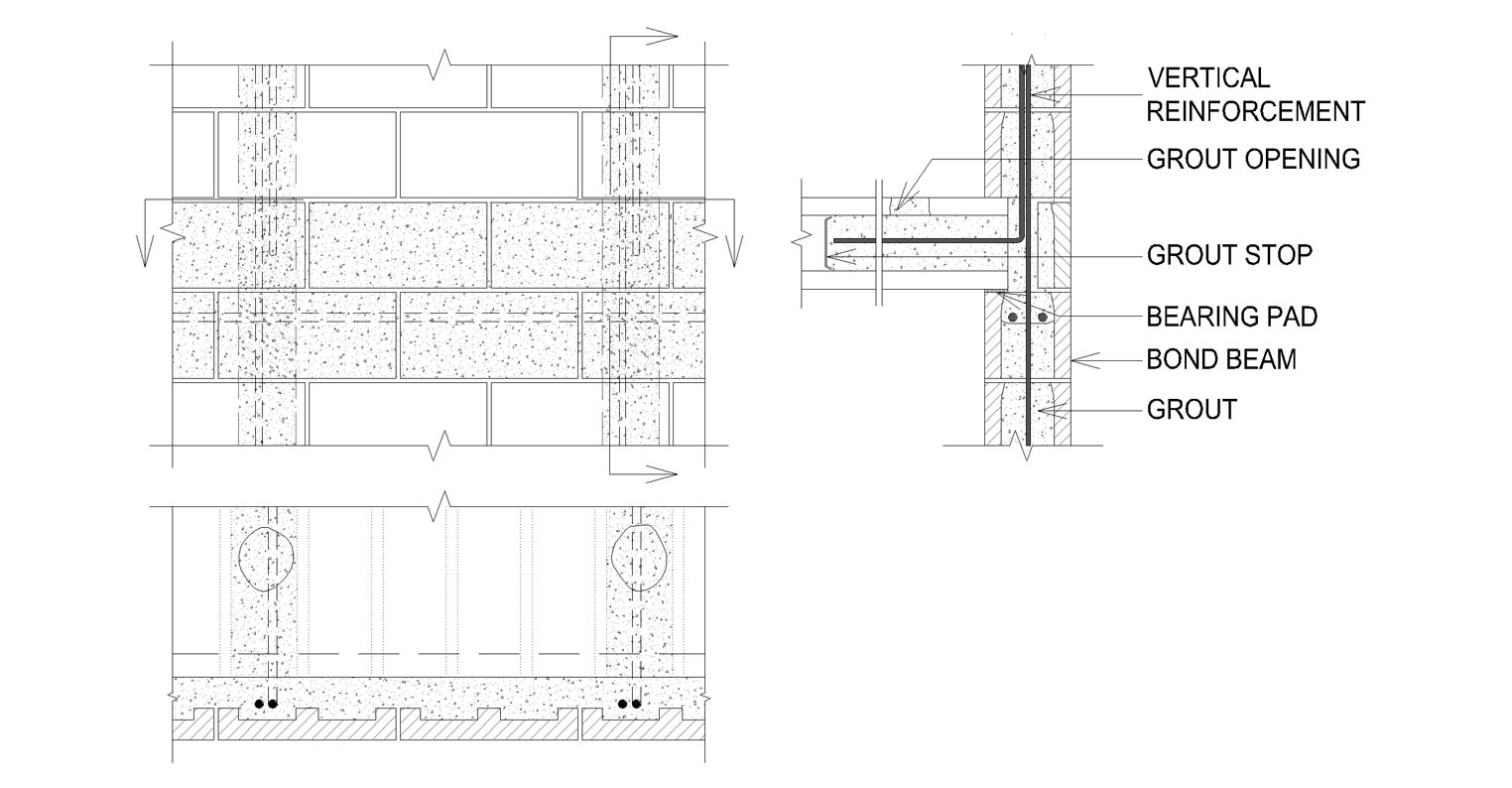

Structural - Detail E1 Image

LENGTH OF THE DOWEL RETURN INTO THE PRECAST PLANK PER STRUCTURAL REQUIREMENTS
GROUT STOPS REQUIRED
