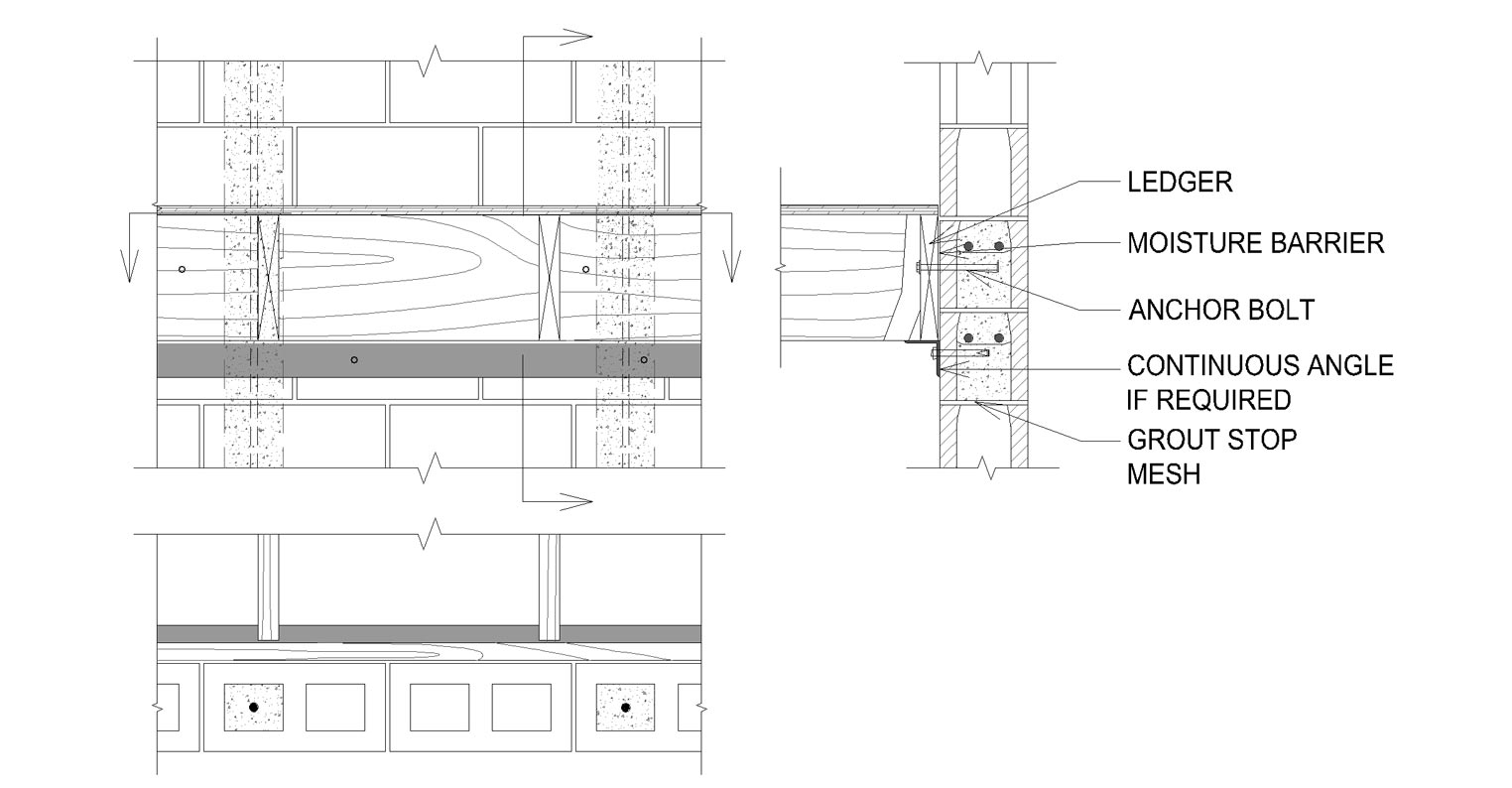

- PROVIDE MOISTURE BARRIER BETWEEN WOOD AND BLOCK
- BOLT SPACING AND SIZES PER STRUCTURAL REQUIREMENTS

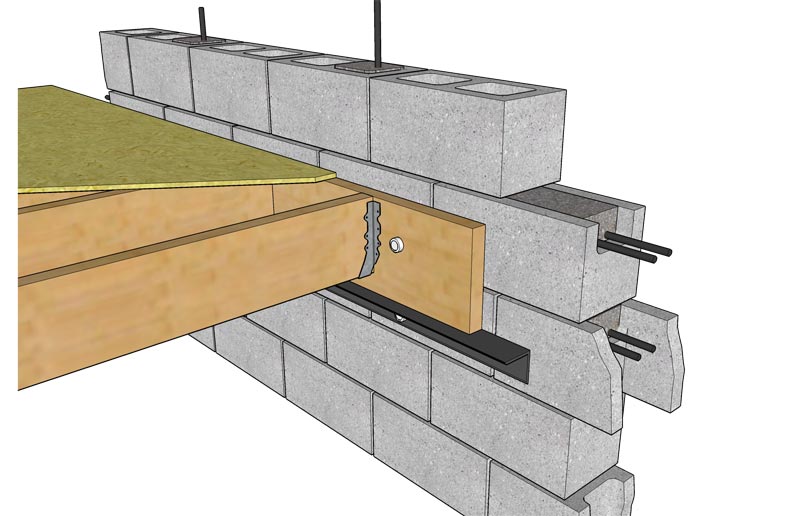

- CONTINUOUS ANGLE SHOWN SUPPORTED BY DOUBLE BOND BEAM - VARIES BASED ON STRUCTURAL REQUIREMENTS; DETAIL SHOWS DOUBLE BOND BEAM, JOIST HANGER AND CONTINUOUS ANGLE; JOIST END SUPPORT DETAIL VARIES DEPENDING ON THE SELECTED WOOD PRODUCT
