Detail A. 5: Parapet

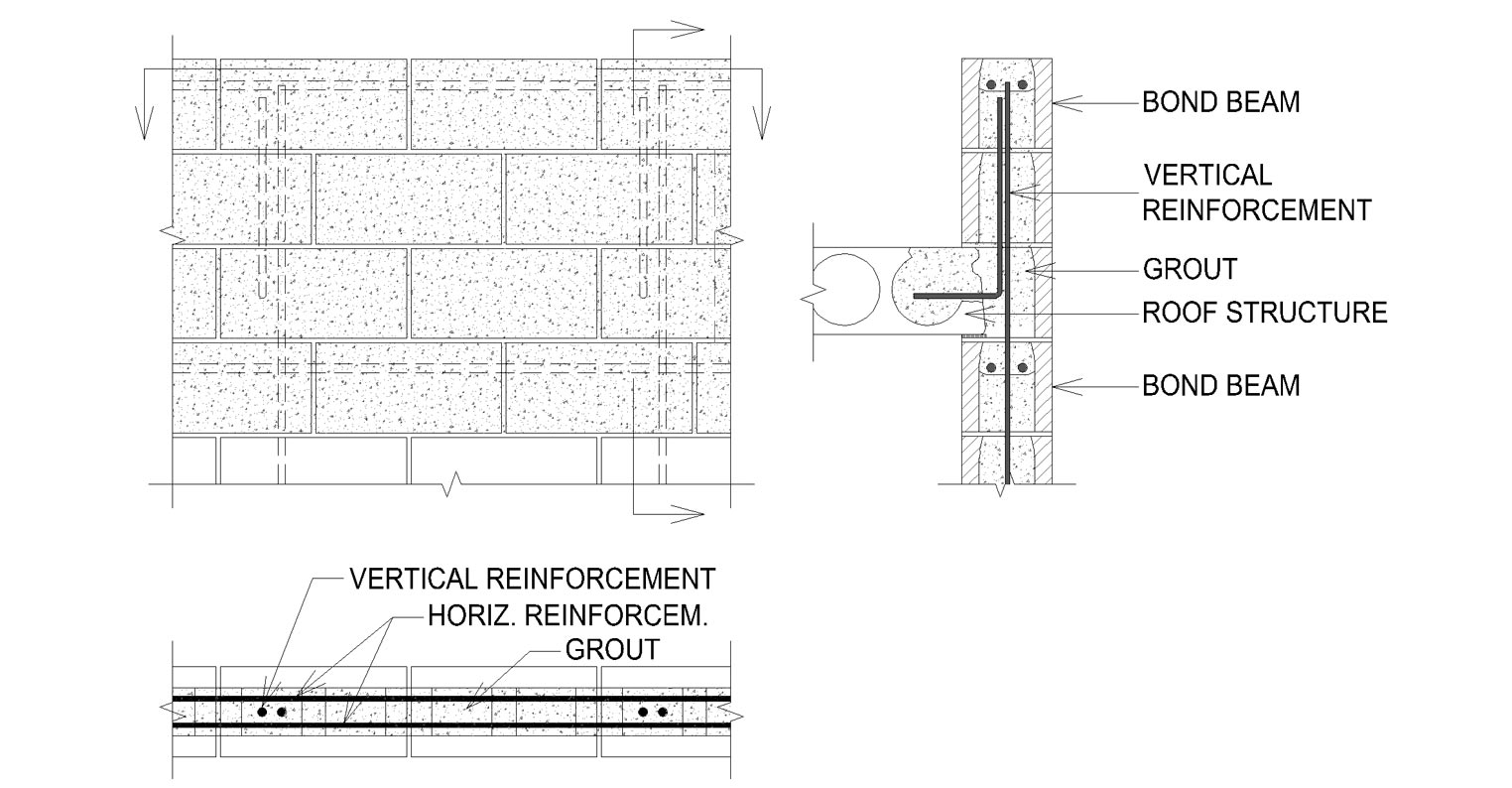

Structural - Detail A5 Image

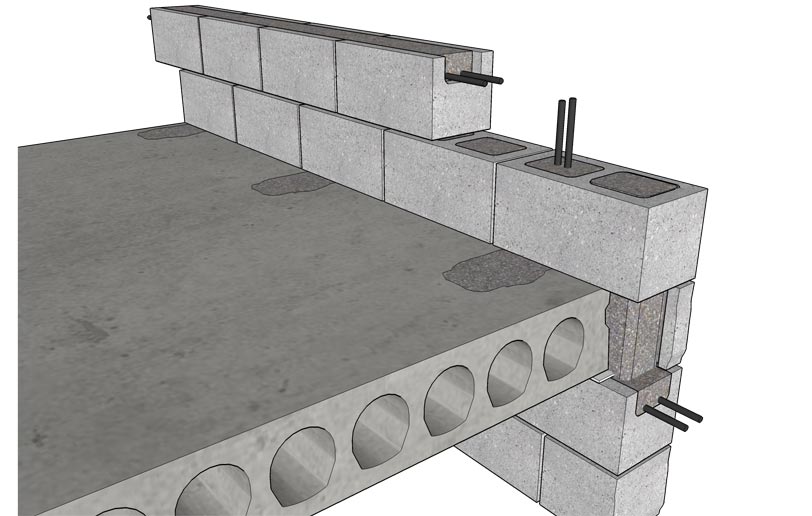

Structural - Detail A5 Image
Notes

  • PARAPET COURSES ARE GROUTED PER STRUCTURAL REQUIREMENTS
  • TYPICALLY GROUTED SOLID FROM ROOF TO TOP OF PARAPET
  • VERTICAL REINFORCEMENT WILL VARY WITH PARAPET HEIGHT AND LOADS
  • PARAPET CAP NOT SHOWN, TYPICALLY PRECAST OR METAL, SLOPED TO ROOF
